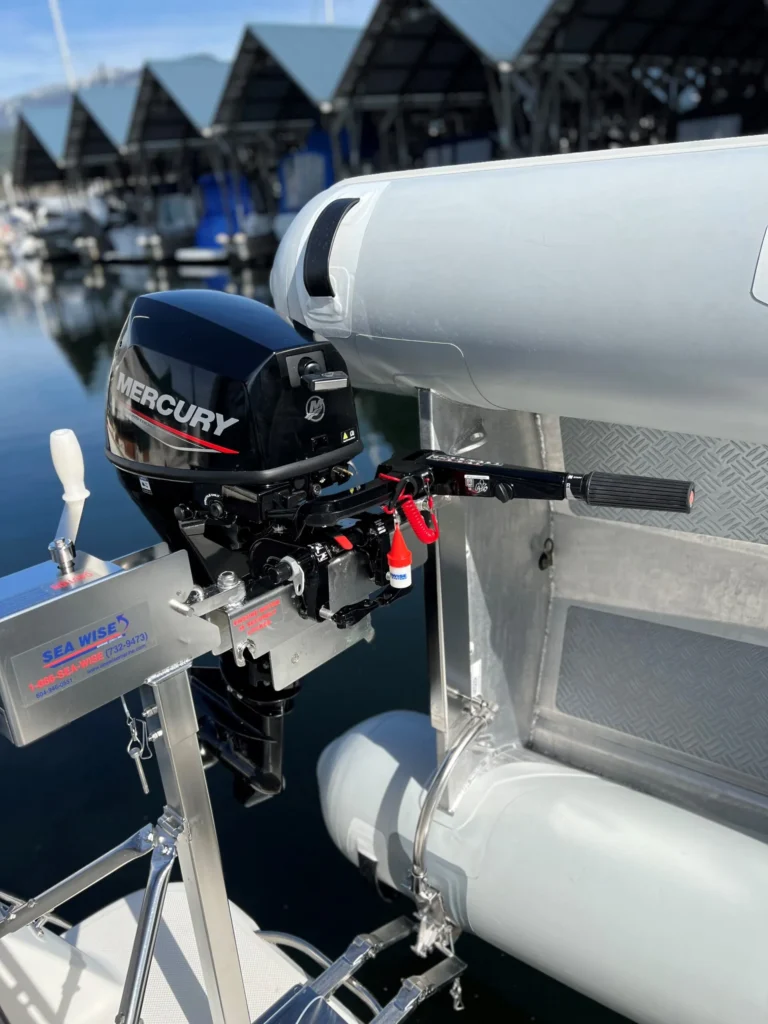

The SeaWise Manual Davit System
Maximum Lifting Power. Minimum Effort.
Don’t let the word “manual” fool you. The SeaWise Manual System is a marvel of mechanical engineering designed to make lifting your tender easy, safe, and reliable—without requiring a drop of electricity.
Ideal for trawlers and cruising vessels over 30 ft, this system proves that you don’t need electric power to have a luxury experience.
The SeaWise Manual Davit System
Maximum Lifting Power. Minimum Effort.
Don’t let the word “manual” fool you. The SeaWise Manual System is a marvel of mechanical engineering designed to make lifting your tender easy, safe, and reliable—without requiring a drop of electricity.
Ideal for trawlers and cruising vessels over 30 ft, this system proves that you don’t need electric power to have a luxury experience.
The 25:1 Gear Advantage
How do you lift a 400 lb boat with one hand? Physics.
The heart of our Manual System is a custom-engineered worm gear reduction mechanism with a 25:1 ratio.
- What this means: For every 25 turns of the handle, the drum turns once. This multiplies your input force significantly.
- The Result: An average adult can safely hoist a fully loaded tender (dinghy + motor + fuel) from the water to the stowed position with minimal physical exertion.
- Safety: It features a self-braking mechanism that prevents the handle from spinning back, ensuring total control during launch and retrieval.
Why Choose the Manual System?
100% Reliable (No Power Needed)
Batteries fail. Hydraulics can leak. A gear system just works.
For captains who cruise to remote locations (Desolation Sound, The Bahamas) or sailors with limited battery banks, the Manual System offers ultimate peace of mind. It is always ready to launch.
Lightweight Design
Weight on the transom affects your boat’s trim and fuel economy.
- SeaWise Manual System Weight: ~100 lbs (45 kg).
- Compared to Hydraulics: It is nearly half the weight of a hydraulic setup, making it the perfect choice for weight-sensitive vessels or swim platforms with lower load ratings.
Premium Build Quality
Just like our electric models, the Manual System is built to outlast your boat.
- Case: Durable Bronze alloy.
- Gears: Hardened Steel and Bronze.
- Structure: Electro-polished 316L Stainless Steel.
- Cable: Marine-grade stainless steel aircraft cable.
Technical Specifications
| Feature | Specification |
|---|---|
| Lifting Capacity | Up to 450 lbs (204 kg) |
| Gear Ratio | 25:1 (Worm Gear Reduction) |
| System Weight | Approx. 100 lbs |
| Material | 316L Electro-Polished Stainless Steel |
| Safety | Self-braking winch mechanism |
| Warranty | 5-Year Limited Warranty |
Technical Specifications
| Feature | Specification |
|---|---|
| Lifting Capacity | Up to 450 lbs (204 kg) |
| Gear Ratio | 25:1 (Worm Gear Reduction) |
| System Weight | Approx. 100 lbs |
| Material | 316L Electro-Polished Stainless Steel |
| Safety | Self-braking winch mechanism |
| Warranty | 5-Year Limited Warranty |

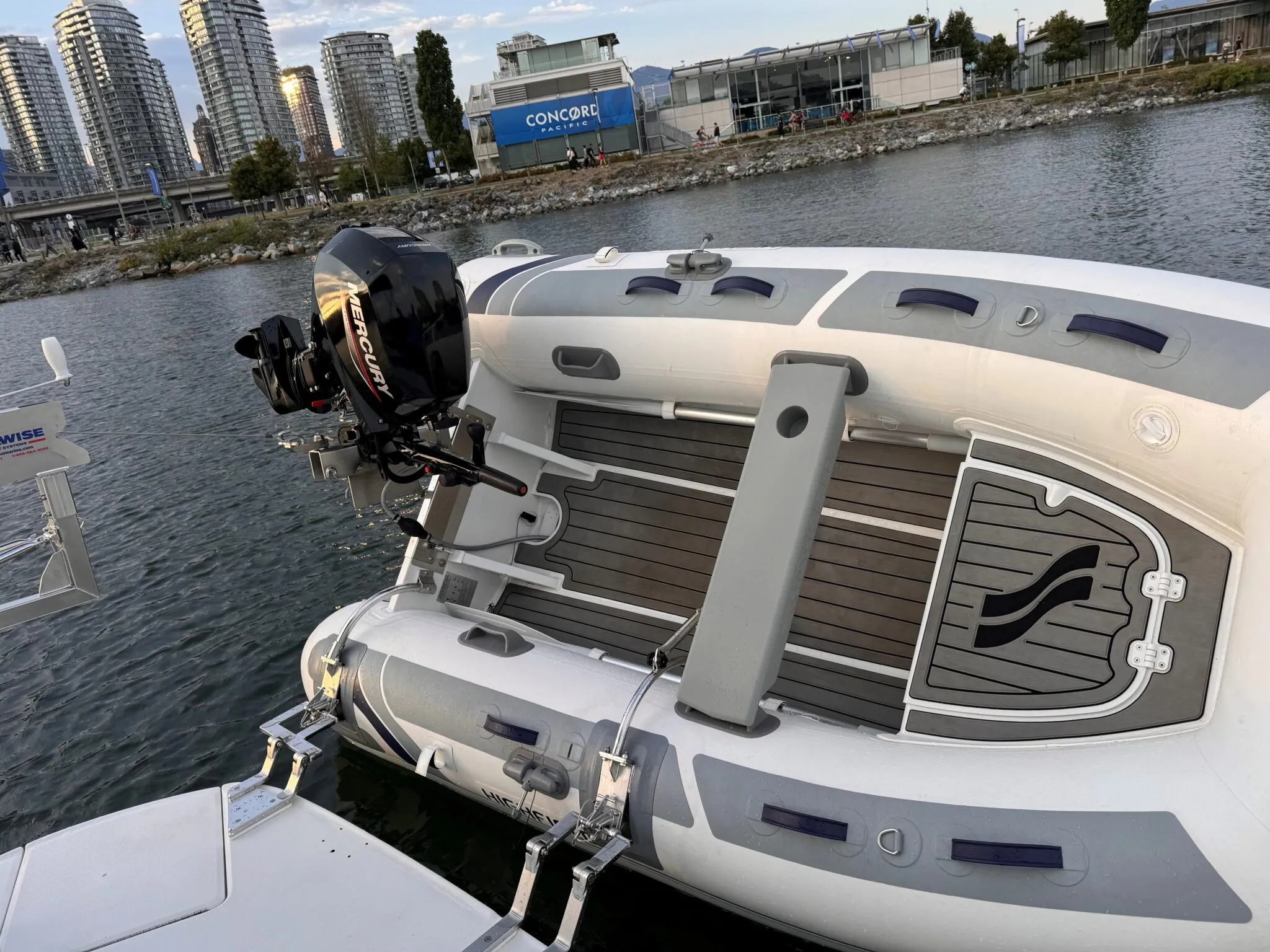

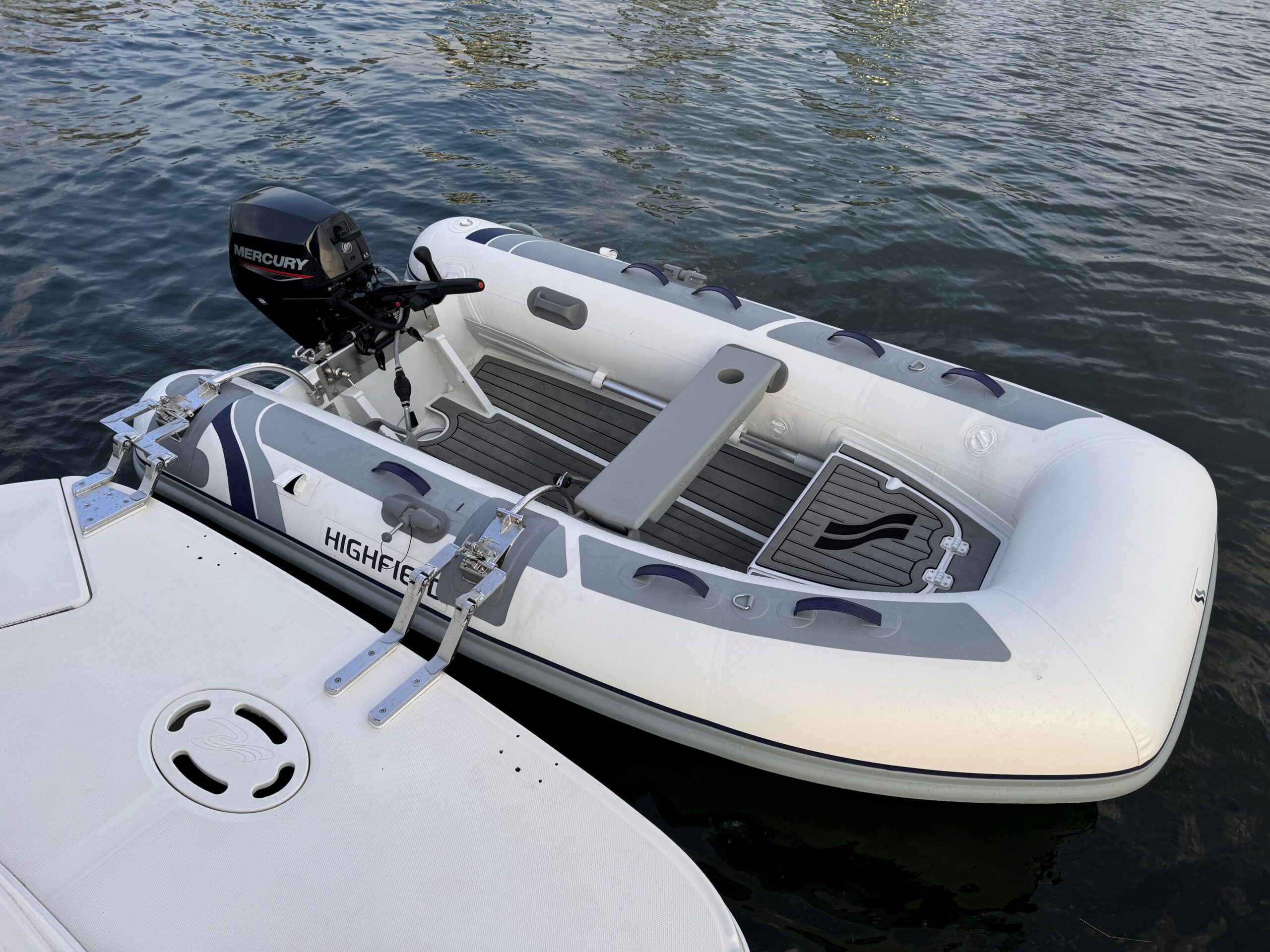

See Our Davit System In Action
Custom Fit for Your Boat
Will It Fit My Boat?
The Manual System is our most versatile unit. We manufacture custom bracket kits to fit the swim platforms of virtually any vessel, including:
Powerboats
Sea Ray, Bayliner, Meridian, Cutwater, and more. If your main vessel has a swim platform, it can be outfitted with a SeaWise.
Inflatables
Fits Zodiac, Highfield, Walker Bay, and AB Inflatables, Achilles (Soft or Hard Bottom).
Need to lift more than 450 lbs?
If you have a heavy center-console tender or a large 4-stroke outboard, check out our Electric Davit System rated for 800 lbs.
